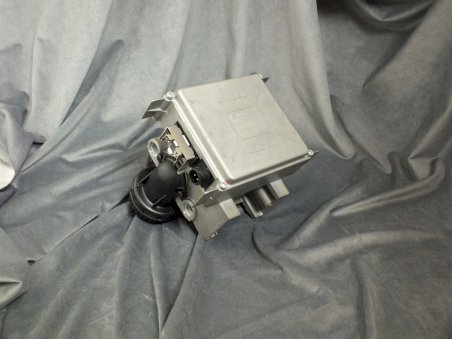

Ebs-Axle Modulator

EBS Modulator No. 480 103 063 R Manufacturer: WABCO This product is designed for heavy-duty vehicles. The modulator controls each wheel of the vehicle individually by reading speed data and adjusting the braking force applied to each wheel. Specifications: Port Thread 11: M22 x 1.5 JED-388 Port Thread 12: M22 x 1.5 JED-388 Port Thread 13: M22 x 1.5 JED-388 Port Thread 21: M22 x 1.5 JED-388 Port Thread 22: M22 x 1.5 JED-388 Port Thread 23: M16 x 1.5 JED-388 Port Thread 3: Integrated Silencer Protection Class: IP 66 / IP 69 K Comments: 500 Kba NOT DOWNWARD COMPATIBLE Maximum Working Pressure: 10.0 bar Mounting: 2x M12 x 1.5 Voltage (V): 24 Nominal Current (A): 5 A Distance Between Holes: 100 mm Electrical Connection: Bayonet DIN 72585 1A-4.1-Sn/K2 Type: Drive axle 4 × 2 with backup valve Calculated Volume (dm³): 8.1982 Temperature Range: -40°C to +80°C Weight (kg): 5.878 UPC: 193133316978 Dimensions: 229 x 179 x 200 mm Weight (lb): 12.959
