Siłownik hamulcowy 20/24" PRO 480 010 0

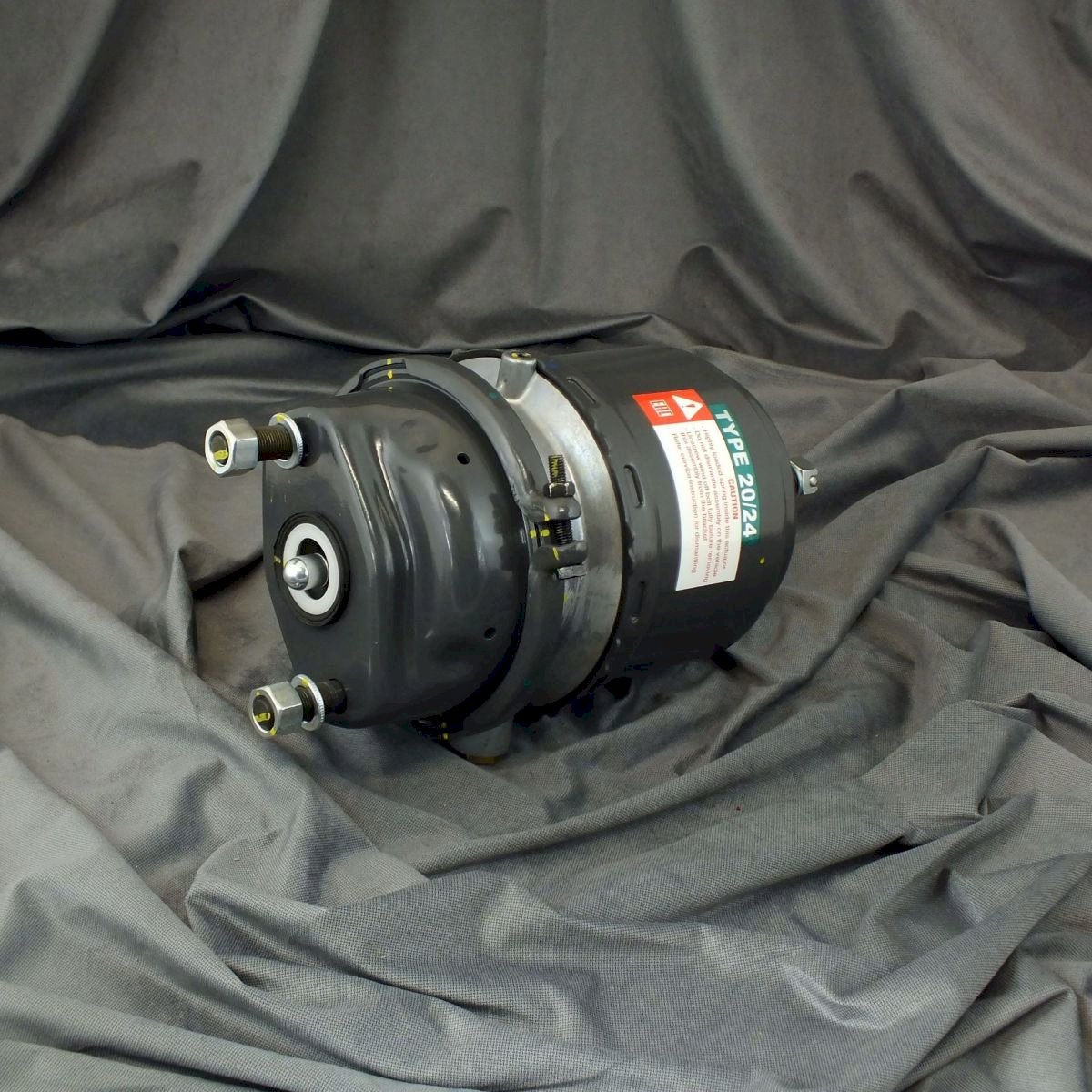

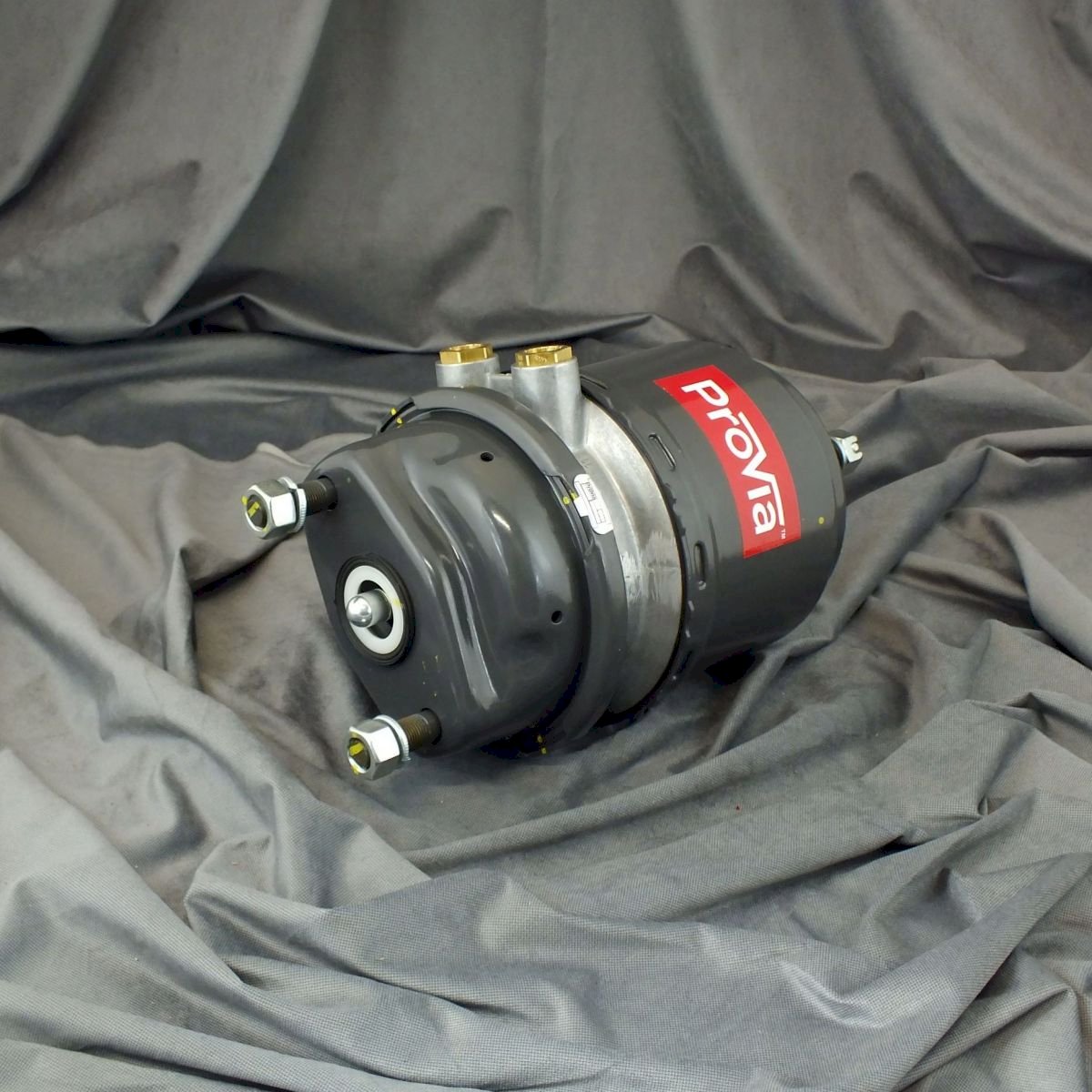

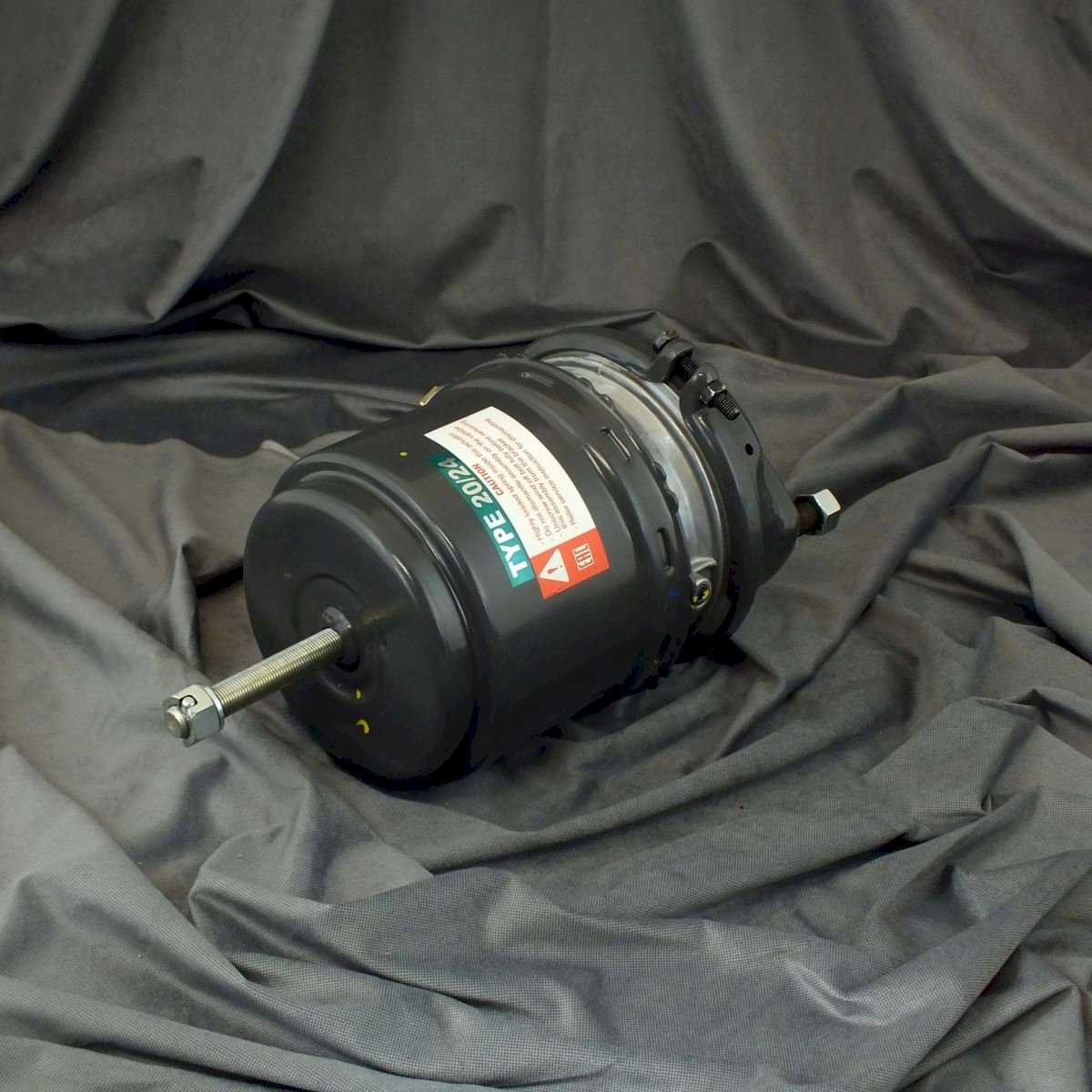

Brake Actuator 20/24" no. PRO 480 010 0 manufactured by ProVia. This product is designed for heavy vehicles. It is a dual-function membrane actuator. It contains 2 elements of the braking system, providing both parking and working brake functions.

• ProVia Warranty: 1 year
• Release Pressure: 4.9 bar
• Screw Lengths: 43 mm
• Total Length: 286 mm
• Push Rod Length: 15 mm
• Push Rod Thread: Ball R8
• Port Thread 11: M16 x 1.5 JED-464-0
• Screw Threads: M16 x 1.5
• Maximum Working Pressure: 10.0/8.5 bar
• Distance Between Screws: 120.7 mm
• Connection Port: M16×1.5
• Port: Working pressure (P emaks.): 11: 10 bar (13 bar), 12: 8.5 bar (11 bar)
• Return Spring Force: 220 N
• Output Force of Working Brake (in kN): 9.0 kN
• Output Force of Spring Brake (in kN): 5.5-10 kN
• Stroke: 65/65 mm
• Connection Specification: JED-464-0
• Type: 24/24
• Working Type: Disc
• Temperature Range: -40 to +85 °C
• Calculated Volume (dm³): 14.44
• Dimensions: 380 x 200 x 190
