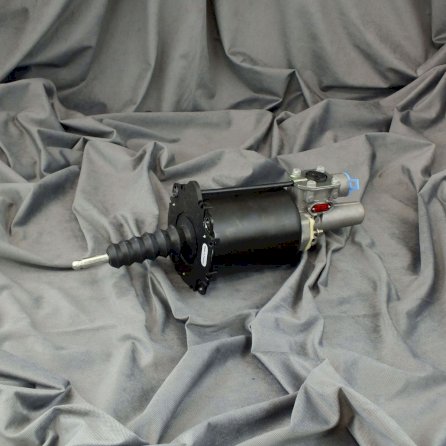

Servo Clutch

Clutch assistance mechanism no. 970 051 414 7 produced by WABCO. This mechanism assists the clutch of a heavy vehicle. It is a component of the clutch system responsible for reducing the force that the driver must apply to operate the clutch mechanism. Length: 264 mm Push rod thread: Ball Ø 12.0 mm Port thread 11: M22 x 1.5 JED - 388 Port thread 1–4: M14 x 1.5 (G) Port thread 31: Bleed Port thread 32: Ø 8.0 mm Maximum working pressure: 10.0 bar Distance between holes: 130 mm Stroke: 85 mm Oil inlet: Brake fluid SAE J 1703 Temperature range: -40°C to +100°C Mounting: 4x Ø 9.0 mm Weight (kg): 2.667 Dimensions: 401 x 139 x 124
