Servo Clutch

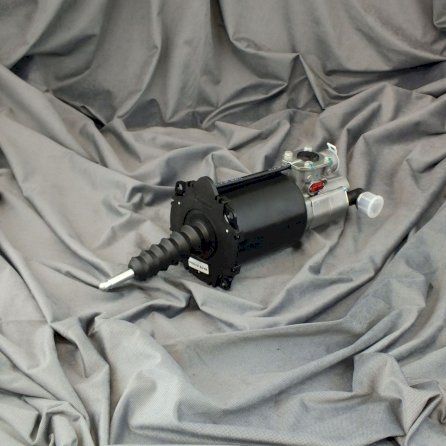

Clutch assistance mechanism no. 970 051 412 7 produced by WABCO. This product is intended for heavy vehicles. The main function of the assistance mechanism is to reduce the force needed to press the clutch pedal in the heavy vehicle. This product is designed for MAN vehicles. Application: MAN Maximum working pressure: 10 bar Length: 264 mm Push rod thread: Ball Ø 12.0 mm Port thread 11: M22 x 1.5 JED - 388 Port thread 1–4: M14 x 1.5 (G) Port thread 31: Bleed Port thread 32: Ø 8.0 mm Maximum working pressure: 10.0 bar Voltage (in V): 12 V Distance between holes: 130 mm Electrical connection: Bayonet DIN 72585 - A1 - 2.1 - SN K2 Stroke: 85 mm Oil inlet: Mineral oil Temperature range: -40°C to +80°C Mounting: 4x Ø 9.0 mm Weight (kg): 2.839 Dimensions: 369 x 139 x 132 Stroke: 85. Force on the piston rod: 6000 N Power supply connection: M22 x 1.5. Oil supply connection: M14 x 1.5.
