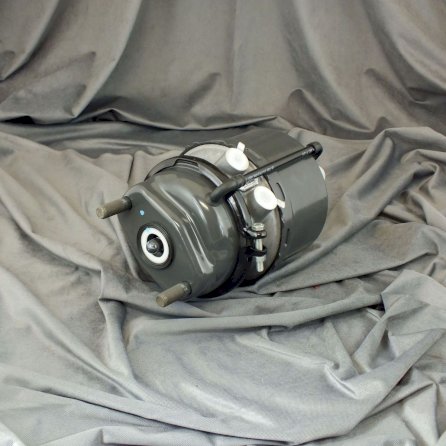

Tristop-Cylinder Disc G-20/24 Hd

Brake Actuator 20/24 no. 925 460 027 0 manufactured by WABCO. The actuator transmits the pressure force of the pneumatic system to the brake shoe clamps. This product is designed for heavy vehicles and trucks.

• Release Pressure: 5.1 bar
• Screw Lengths: 43 mm
• Total Length: 253 mm
• Push Rod Length: 15 mm
• Push Rod Thread: Ball R8
• Port Thread 11: M16 x 1.5
• Port Thread 12: M16 x 1.5
• Port Threads: M16 x 1.5
• Screw Threads: M16 x 1.5
• Maximum Working Pressure: 10.2/8.5 bar
• Distance Between Screws: 120.7 mm
• Return Spring Force: 260 N
• Output Force M: 7600 N
• Stroke: 57/57 mm
• Type: 20/24
• Working Type: Disc
• Temperature Range: -45°C to +80°C
• Calculated Volume (dm³): 14.44
• Weight (kg): 7.86
• Dimensions: 382 x 189 x 200
