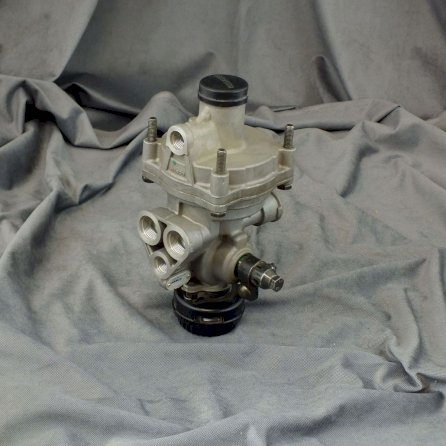

Automatic Load Sensing Valve

REFERENTION NUMBER: 4757101360

NET: 899,00 PLN
GROSS: 1.105,77 PLN

NET DEPOSIT: 0,00 PLN
GROSS DEPOSIT: 0,00 PLN

ADD TO CART

AVAILABILITY:	1
DELIVERY:	available immediately, but a small amount

PRODUCT DESCRIPTION:

Automatic Brake Force Regulator No. 475 710 136 0 by WABCO. Automates the process of adjusting pressure in the pneumatic brake system. An essential component of the pneumatic brake system in a truck. Actuation Angle: -54° to +16° Port 1 Thread: 4757101570 Port 2 Thread: M22 x 1.5 JED-388 / M16 x 1.5 JED-388 Port 4 Thread: M16 x 1.5 JED-388 Comments: 3rd port 2 with M16 x 1.5 Voss Maximum Operating Pressure: 10.2 bar Bolt Distance: 84.0 x 84.0 mm Breaking Point: 0.6 bar Adjustment Ratio: 1:8 Type: Mechanical Operating Type: Relay valve Outlet: With silencer Temperature Range: -40°C to +80°C Mounting: 4x M8 Dimensions: 247 x 126 x 126 mm

TECHNICAL DATA:
