Coiled Tube

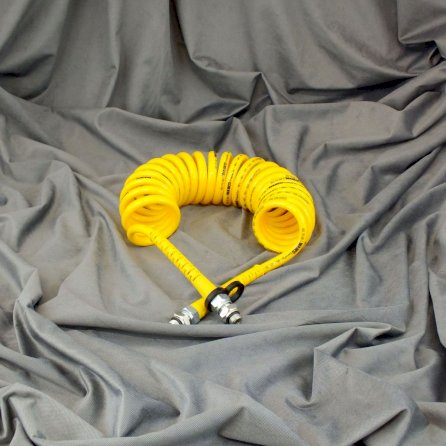

Spiral Cable No. 452 713 002 0 Manufacturer: WABCO This cable is designed for connecting the trailer to a heavy-duty vehicle. The stretchable spiral cable is intended for connecting the braking circuit of a wheeled vehicle, primarily for coupling trailers to a tractor unit. Cables marked in yellow are used for controlling the brakes of the set. Specifications: Length: 700 mm (packed) Color: Yellow Tangle-Free Protection Color: Red Comments: M18 x 1.524° cone end Maximum Working Pressure: 10.0 bar Body Material: TPU Wrench Size: 22 Thread D: M16 x 1.5 + O-ring Type: Ø 12 x 1.5 mm Version: With connectors Temperature Range: -40°C to +70°C Outer Diameter: 12 mm Weight (kg): 0.533 Dimensions: 750 x 70 x 70 mm
