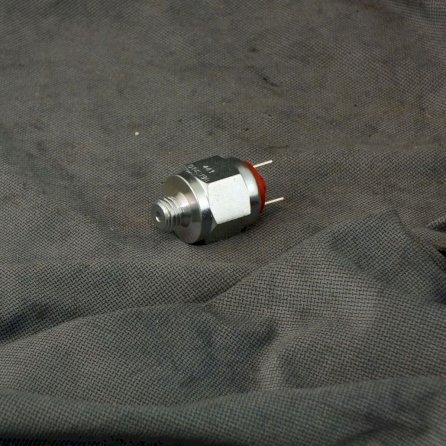

**Pressure Sensor** No. 441 014 019 0 by WABCO. The pressure sensor measures the pressure level in the pneumatic system of a truck. Its function is to provide pressure test results to the control systems managing that pressure. It is equipped in vehicles that have a pneumatic braking system.

• Switching Pressure: 0.15 bar
• Thread: M12 x 1.5
• Port Threads: M12 x 1.5
• Protection Class: IP00
• Color: Red
• Max. Operating Pressure: 12.0 bar
• Voltage (V): 12/24
• Electrical Connection: Tab 6.3 x 0.8 IEC - 60760 CuZn37, galvanized Ag
• Wrench Size: 24.0 mm
• Type: Normally Open

• Temperature Range: -40°C to +80°C
• Weight (kg): 0.063
• Dimensions: 39 x 27 x 25
