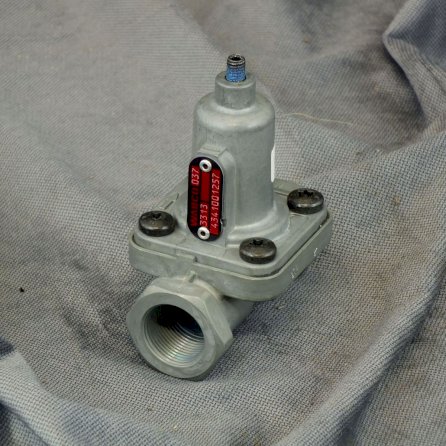

Charging Valve

Pneumatic Circuit Flow Valve No. 434 100 125 7 by WABCO. This valve includes a flow pressure regulator set to a specific activation value. It is used to regulate the flow of air in the pneumatic system, protecting it from overload or distributing air pressure evenly across the system. Activation pressure of the flow valve: 6.0 bar. Port 1 thread: M22 x 1.5 Port 2 thread: M22 x 1.5 Maximum operating pressure: 13 bar Weight (kg): 0.421 Dimensions: 93 mm x 80 mm x 50 mm Type: No reverse flow. Adjustment range: 5.3 / 7.0 bar.
